DENKA

Product Information

Caralyan PP Cut E Tape

Product Information

Outline

This packing tape is very easy to work with, and can be torn cleanly by hand.

Characteristics

  • It uses Caralyan Y (special PE film), making it easy to tear cleanly by hand. (CUT-E Super 40)
  • The use of a special polypropylene film (OPP) that can be cut in a straight line makes this product easy to cut straight by hand. (CUT-E 70)
  • It is low-odor, with excellent low-temperature properties.
  • It uses an environmentally friendly non-solvent rubber hot-melt adhesive.
  • This product does not intentionally use toxic substances designated by the EU’s RoHS Directive.

Uses

For sealing cardboard (especially well suited to light to medium-weight packages)

Related Information

Specifications

Width (mm) Length (m) Packing (rolls) CUT-E 70 CUT-E Super 40
25 50 100 Transparent only Transparent only
38 60
50 50
60 40
75 30
Standard colors Transparent, Beige
Color product (width 50) 50 50 - Red, Blue, Yellow,
Green, White

Physical Properties (These properties are typical values. They are not guarantees.)

Item Unit Measured values
CUT-E 70 CUT-E Super 40
Thickness mm 0.097 0.068
Adhesive strength N/cm 6.9 6.6
Holding force mm/60minute 0.0 0.0
Unwinding force N/cm 0.9 0.7
Tensile strength N/cm 22 21
Elongation % 843 161

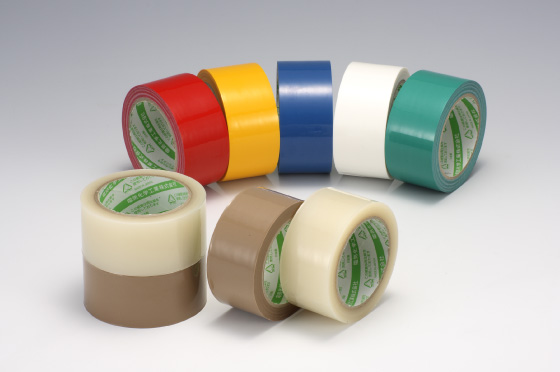

Standard Colors

Contact Us

Electronics & Innovative Products

High Functional Adhesive Materials Dept.
TEL
+81-3-5290-5538
FAX
+81-3-5290-5777
  • It is the customer’s responsibility to always test products before use and confirm their fitness for purpose and safety.
  • Any product contained on this Website or any product using a product contained on this Website should be disposed of in accordance with laws and regulations.
  • Before use, please confirm the detailed method of use, precautions, and other information by using the technical documentation and Material Safety Data Sheet. These materials are available from the relevant Division. Please request them.
  • The information contained in this website is subject to change without notice as new knowledge becomes available.
