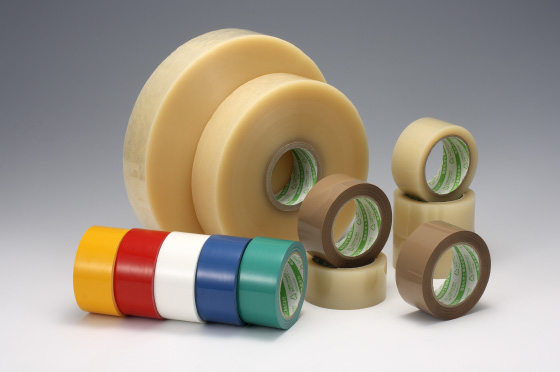

Caralyan OPP Tape

Product Information

Outline

This packing tape uses polypropylene film as its backing material. It has excellent tensile strength, and oil and water resistance.

Characteristics

  • The backing is made from polypropylene, which gives it excellent tensile strength.
  • Its strong holding power fastens flaps with ease.
  • It is low-odor, with excellent low-temperature properties.
  • It rewinds easily and enables more efficient work.
  • It uses an environmentally friendly non-solvent rubber hot-melt adhesive.
  • This product does not intentionally use toxic substances designated by the EU’s RoHS Directive.

Uses

For sealing cardboard (especially well suited to medium to heavy-weight packages)

Related Information

Specifications

Width (mm) Length (m) Packing (rolls) PP-60 PP-60M PP-40 PP-40M
25 50 100 - Transparent only - Transparent only
38 60 Transparent only Transparent only
50 50
60 40 Beige only
75 30 -
50 500 5 Transparent only Transparent only - Transparent only
38 100 60 - - - Transparent only
50 50 - -
75 30 - - - Transparent only
50 1000 5 - - -
Standard colors Transparent, Beige
Color product
(width 50)
50 50 White only - Red, Blue, Yellow,
Green, White
-

Physical Properties(These properties are typical values. They are not guarantees.)

Item Measured values
PP-60 PP-60M PP-40 PP-40M
Thickness mm 0.089 0.087 0.069 0.065
Adhesive strength N/cm 6.2 6.0 6.0 5.5
Holding force mm/60minute 0.0 0.0 0.0 0.0
Unwinding force N/cm 0.8 0.7 0.9 0.8
Tensile strength N/cm 80 78 53 54
Elongation 181 185 181 186

Standard Colors

Contact Us

Electronics & Innovative Products

High Functional Adhesive Materials Dept.
TEL
+81-3-5290-5538
FAX
+81-3-5290-5777
