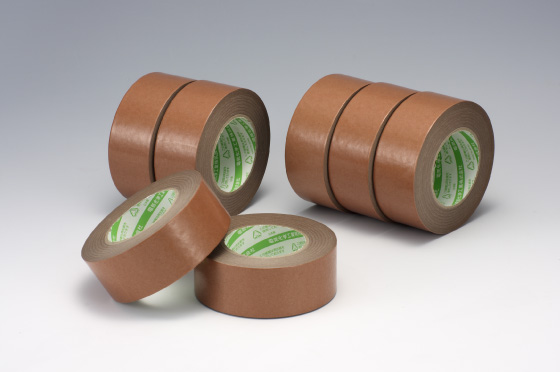

Caralyan Tape

Product Information

Outline

This packing tape for heavy-weight packages uses a special backing made from special polyethylene film and craft, making it easy to tear by hand. The tape’s strong adhesive helps when you want to pack goods securely.

Characteristics

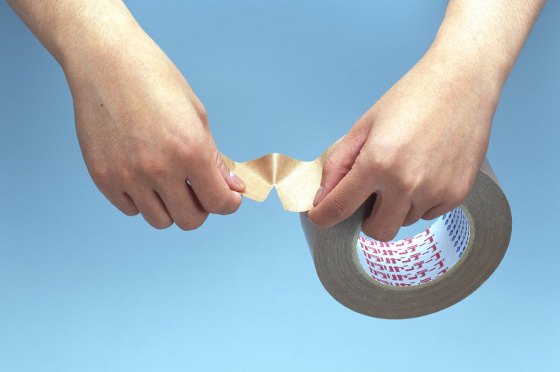

  • It uses Caralyan Y (special PE film), making it easy to tear cleanly by hand.
  • Can be applied in multiple layers, and can be written on.
  • Its strong holding power fastens flaps with ease.
  • It uses an environmentally friendly non-solvent rubber hot-melt adhesive.
  • This product does not intentionally use toxic substances designated by the EU’s RoHS Directive.

Uses

For sealing cardboard (especially well suited to heavy-weight packages)

Related Information

Specifications

Width(mm) Length(m) packing(rolls)
38 50 60
50 50
60 40
75 30

Physical Properties (These properties are typical values. They are not guarantees.)

Item Unit Measured values Reference values
Caralyan Tape Fabric Adhesive Tape
Thickness mm 0.178 0.322
Adhesive strength N/cm 7.0 3.9
Holding force mm/60minute 0.0 Less than 1
Unwinding force N/cm 0.8 3.7
Tensile strength N/cm 72 61
Elongation % 10 11

Color
