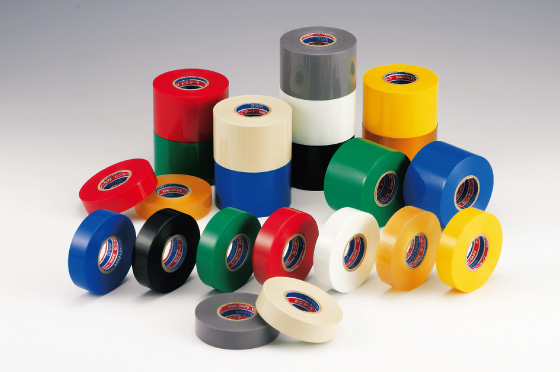

VINI-TAPE® (Vinyl Tape)

VINI-TAPE^® is a Lead-Free & None DOP environmental electrical tape for all wire and cable joints rated up to 600 V.
DENKA has been manufacturing VINI-TAPE^® over 60 years and providing more than 60 countries such as South East, Middle East Asia, Latin America and African countries.
# 261D is electrical tape approved by IEC 60454-3-1-1.

＊Note: VINI-TAPE^® is a registered trademark of Denka (Denka Company Limited.).

High Quality
VINI-TAPE^® is a good quality electrical tape inquality and has excellent resistance to corrosion. Due to a elastic tape backing and high quality design of the adhesive, the tape shall be applied to not only conform and produce a uniform covering in long term, but also prevent from flagging. The high quality of VINI-TAPE^® provides to relieve your amount of repair work.
Excellent Workability
VINI-TAPE^® has easy cut quality for a special process in the side of the tape. Therefore, VINI-TAPE^® helps you to improve the work efficiency further more.
Cold Resistance
With the fine resistance to cold temperature, the properties of adhesive maintain its quality.
Excellent Storability
VINI-TAPE^® tends to be stored in the warehouse which is even relatively in high temperature. VINI-TAPE^® is not deformed with high temperature and holds its shape. Good stock rotation is recommended.
Wide Range of Colors
Bright and clear nine standard colors identify diversify cables easily and accomplish good appearance after binding.
Environmental friendly pressure sensitive adhesive
We do not intentionally use any of the substances in EU regulations of RoHS and REACH on VINI-TAPE^® , unless the substance is in an application that is exempt under these regulations.

Terminal processing of power-cables, wiring and insulation of electrical joints.
Protection, binding, and identification of cables and pipes.
Protection, repairs, and binding for homes, construction, tying works,
and other uses.
Bundling and repairing automotive wire harnesses.

Thickness (mm)	Width (mm)	Length	Packing (rolls)
0.2	19	10 Yards	500
0.2	19	10 Meters	500

Peel adhesion		Tensile strength	Elongation	Volume resistivity	Withstand voltage
N/10mm		N/10mm	%	MΩ･cm	5000V×1minute
Adhesion test panel	Adhesion backing	N/10mm	%	MΩ･cm	5000V×1minute
1.68	2.19	36.4	191	6.99x10⁸	Good

* Reference values only.
* If you need other colors or specifications, please contact us.

Thickness (mm)	Width (mm)	Length	Packing (rolls)
0.15	19	10 Yards	500

Peel adhesion		Tensile strength	Elongation	Volume resistivity	Withstand voltage
N/10mm		N/10mm	%	MΩ･cm	5000V×1minute
Adhesion test panel	Adhesion backing	N/10mm	%	MΩ･cm	5000V×1minute
1.55	2.05	27.3	188	2.90x10⁸	Good

* Reference values only.
* If you need other colors or specifications, please contact us.

Thickness (mm)	Width (mm)	Length	Packing (rolls)
0.13	19	10 Yards	500

Peel adhesion		Tensile strength	Elongation	Volume resistivity	Withstand voltage
N/10mm		N/10mm	%	MΩ･cm	5000V×1minute
Adhesion test panel	Adhesion backing	N/10mm	%	MΩ･cm	5000V×1minute
1.24	1.89	23.3	180	2.05x10⁸	Good

* Reference values only.
* If you need other colors or specifications, please contact us.
